Cloudtap Design Series

Learn more
  • Model no: CT-D*****

Cloudtap Design Series

$4,045.45 - $4,177.27 inc GST
In stock and ready to ship
Current Stock:Only left:
Select an option
Mains
Mains with Limescale
Tank
Select an option
Mains Carbon Pack
Mains Anti-Lead Pack
Mains Catalytic Pack
Mains Scaleblock Pack
Mains Scale + Anti-Lead Pack
Mains Scale + Catalytic Pack
Tank Carbon Pack
Tank Anti-Lead Pack
Tank Antibacterial Pack
Description

Better By Design

The complete Cloudtap package, built from the ground up for Aussie homes and Aussie water. The Design series delivers a bespoke, plumb-and-go experience for users and installers.

Design Series systems are… well, designed for your specific home and water. From the focus of your filter pack to the colour of the system’s cover, the design series lets you build the perfect filtration solution for your lifestyle.

Free-Flowing Flexibility

With more than 40 system configurations available at launch and even more on the way, the Cloudtap Design Series lets you tailor every detail without having to micromanage every step of the process.

Let us know where your water comes from, and we’ll match you with a pre-assembled system and filter pack that ticks all your boxes. Need to change something? No worries—all our filters are available for individual purchase, so you can change your configuration at any time.

If you already know what you want, you're exactly where you need to be! You can change every detail about your configuration on this product page.

Softer Skin & Healthier Hair

Chemicals like chlorine strip the natural oils from your skin and hair, leaving them brittle and more prone to breakage. By filtering those chemicals out of your shower water, Cloudtap systems protect the lustre and volume of your hair and reduce premature signs of ageing. It also preserves the softness of your laundry without needing to dump chemicals all over every load, which makes your clothes softer to wear and reduces residual chemicals leftover after they dry.

Chlorine reduction isn’t just about improving your water’s taste and odour (although tap water that doesn’t taste or smell like a swimming pool is a huge plus). Filtering chemicals out of your water improves your quality of life in dozens of small, smooth ways.

Quality you can Trust

Cloudtap systems aren’t just made in Australia—they’re made on the premises. 4N Products has been in manufacturing for over 70 years, with major clients like Atco Gas and Western Australia’s Water Corporation using components created right here in our Perth workshop.

When you buy a Cloudtap system, you can feel confident that the filtration unit you’re installing meets the same quality standards as government-sanctioned water utilities. Our systems come fully assembled and ready for easy installation, with WaterMark certifications for each individual component and the system as a whole.

Banish Limescale with Scaleblock

The Scaleblock second-stage filter is a miracle worker for homes in hard water regions. Limescale shortens the lifespan of appliances, damages heating elements, clogs pipes, and can permanently etch glass surfaces around your home, and removing it typically involves plugging in an electric softener and/or replacing healthy minerals in your drinking water with sodium (or removing them completely through reverse osmosis).

Rather than pumping your water full of salt or stripping away healthy minerals like separate softeners or resin cartridges, the unique conditioning media inside this cartridge crystallises calcium before it gets the chance to form stubborn mineral scales. These harmless, flavourless, odourless crystals keep calcium carbonate isolated, giving you the full benefits of mineral-rich water without dealing with chalky residue and crusty build-up all through your home. Just wipe the crystals away, and they'll disappear first try.

The Scaleblock cartridge doesn’t just block calcium; the internal media catches less desirable metals like lead, zinc, and cadmium, keeping heavy metal contaminants out of your home. It also reduces chlorine, so you’re not missing out on any of our standard second-stage filter features.

Straight from the Clouds

Australia may be the driest inhabited continent in the world, but that just makes the rain we do get even more precious. Cloudtap systems with rainwater filter packs let you enjoy collected rainwater without worrying about gutter gunk or airborne contaminants ending up in your tank.

Our pleated sediment filters block particles 14x smaller than the width of a human hair, so they’re more than a match for a couple of leaves. These first-stage filters are even washable, so you can clean off the trapped contaminants and slot the cartri back in like brand-new (not indefinitely, though—always check the replacement advice for your filter pack).

Product details

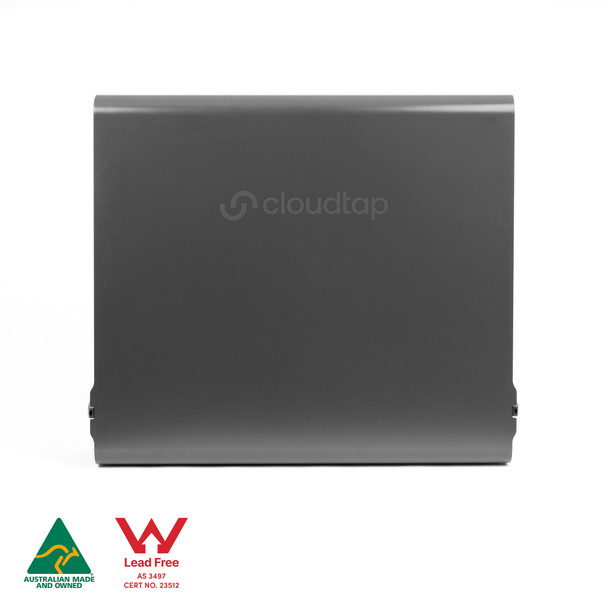

Cloudtap Design Series whole-home filtration system.

  • 95% removal of chlorine, VOCs, and DBPs
  • 10-year warranty (see Warranty & Compliance for more)
  • 30+ configurations
  • WaterMark certified
  • Customisable powder-coated aluminium cover
  • Wall-mounted or free-standing

SPECIFICATIONS

Dimensions: H 803mm. W 944mm. D 220mm.

Weight (dry, exc. filters): 32kg

Inlet pressure: 175-700kPa (PLV required if over 500kPa)

Recommended water temperature: 0.5-38 ℃

Recommended pH: 2-11

Maximum TDS: 2,000 mg/L

Maximum iron: 0.3 mg/L

Maximum manganese: 0.1 mg/L

Maximum hardness: 400 mg/L

Flow rate: 11-60 L/min (varies depending on filter cartridges)

Warranty

Cloudtap systems are covered by a 10-year warranty for domestic use (1 year parts and labour, 9 years parts only) and 3-year warranty for commercial use (1 year parts and labour, 2 years parts only). Direct all warranty queries to info@cloudtap.com.au.

Cloudtap whole-home water filtration systems are designed for residential and light commercial use across a wide range of water sources including mains (town) water, rainwater, bore water, and tank water.

These systems are intended to:

  • Reduce sediment, chlorine, chloramines, volatile organic compounds (VOCs), heavy metals, and other common waterborne contaminants.
  • Improve taste, odour, and overall water quality throughout the home.
  • Operate effectively within standard plumbing systems and water pressure ranges in Australia and New Zealand.

Installation Requirements:

  • Must be installed by a licensed plumber in accordance with local regulations and plumbing codes. Use thread seal tape only and avoid over-tightening.
  • Designed for cold water use only (maximum 38°C). Protect from freezing.
  • Max Operating pressure: 500 kPa. A pressure-limiting valve must be used if pressure exceeds 500 kPa.
  • Not suitable for microbiologically unsafe water unless adequately disinfected before or after filtration.

Lead-Free Compliance Statement

All Cloudtap water filtration systems and components, including filter housings, fittings, and filter cartridges, are manufactured using lead-free materials that comply with:

  • The requirements of Lead-Free standards as defined in the National Construction Code Volume 3 and is suitable for use as part of Lead-Free installation.
  • AS/NZS 4020:2018 - Testing of products for use in contact with drinking water.
  • NSF/ANSI 61 - Drinking water system components: Lead content.

This ensures Cloudtap systems are safe for use in all potable water applications and do not contribute to lead contamination in drinking water.

https://cdn11.bigcommerce.com/s-yrh0q6oggq/images/stencil/original/image-manager/pro-plumber.png?t=1763100644 https://cdn11.bigcommerce.com/s-yrh0q6oggq/images/stencil/original/image-manager/pro-plumber-mobile.png?t=1763107061
Alternative image icon alt

Easy to install, easy to love

Need a hand with installation? We can set you up with a plumber who knows the ins and outs
of Cloudtap systems—just let us know where you are, and we'll take care of the rest!
